TMS UP system components

The flush-mounted system components offer an efficient expansion of TMS flush-mounted systems as needed to provide a larger application area. All components can be connected with the flush-mounted TL-S TMS Comfort control or with the RT TMS 2 escape route control boxes. They can be combined with the cover frames from various switch programs as desired.

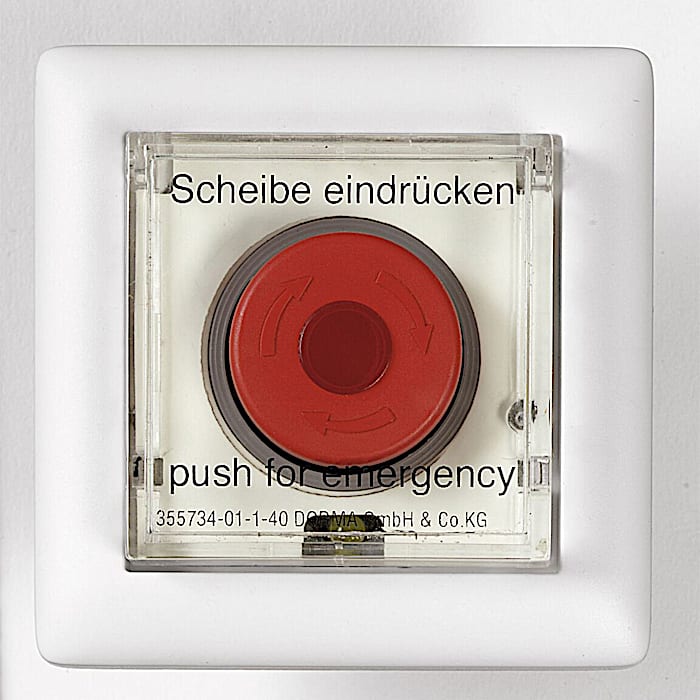

TL-NC DCW^®

Emergency stop switch to disconnect TMS systems, for connections to the RZ TMS 2 or TL-S TMS 2 control board through the DCW^® system bus. With visual and acoustic alarms and protection against tampering. The emergency stop switch cover consists of shatterproof safety glass.

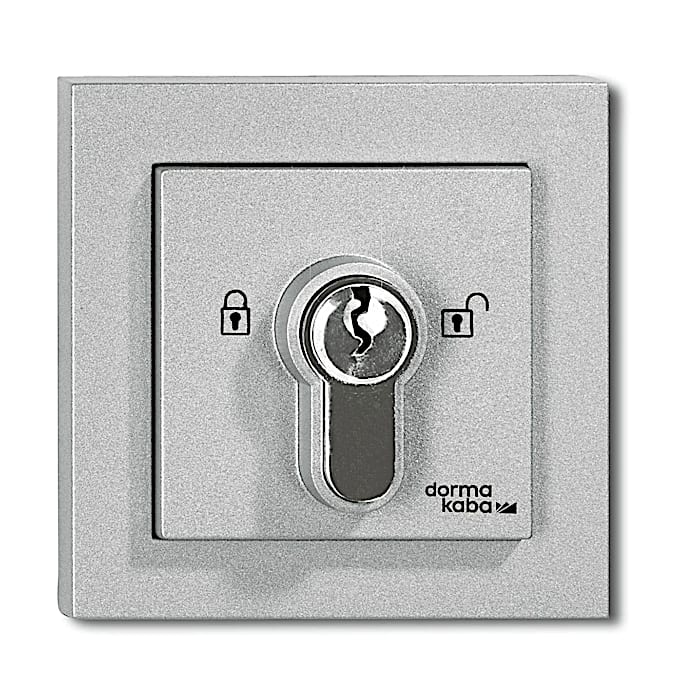

TL-ST

Key switch for the flush-mounted TL-UP Design terminals or the flush-mounted TMS Comfort systems. To unlock and lock doors in escape route security and door management systems.

Input / output module DCW^® flush-mounted

Bus coupling module with three or two freely programmable inputs and outputs to connect products with analog switch contacts to The DCW^® system bus. For installation in device boxes.

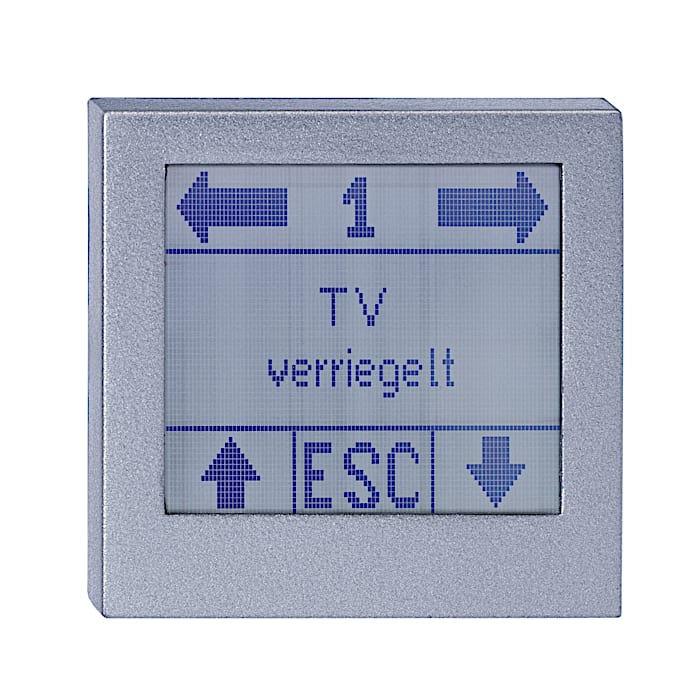

TSD S55 DCW^®

The LCD touchscreen display makes it possible to control TMS systems and visualize the statuses. The system can be locked and unlocked with the keyboard, which has arbitrarily changing key assignments. The TSD can also be used as a down-counter in connection with the ZM 208 DCW^® time module. It is connected through the DCW^® system bus.

Flush-mounted S55 siren

Multifunctional siren for installation in device boxes, featuring 28 programmable types of sounds, the international emergency signal for evacuation and a controllable volume up to 107 dB/A.

Flush-mounted ID card reader DCW^®

ID card reader and combined keyboard/ID card reader for flush-mounted installation for various switch programs. It is connected to the TMS through the DCW^® system bus.
