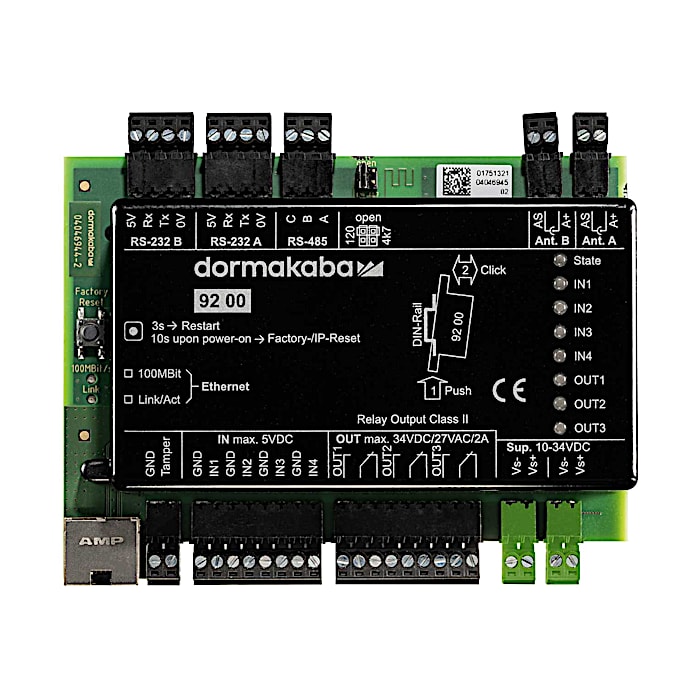

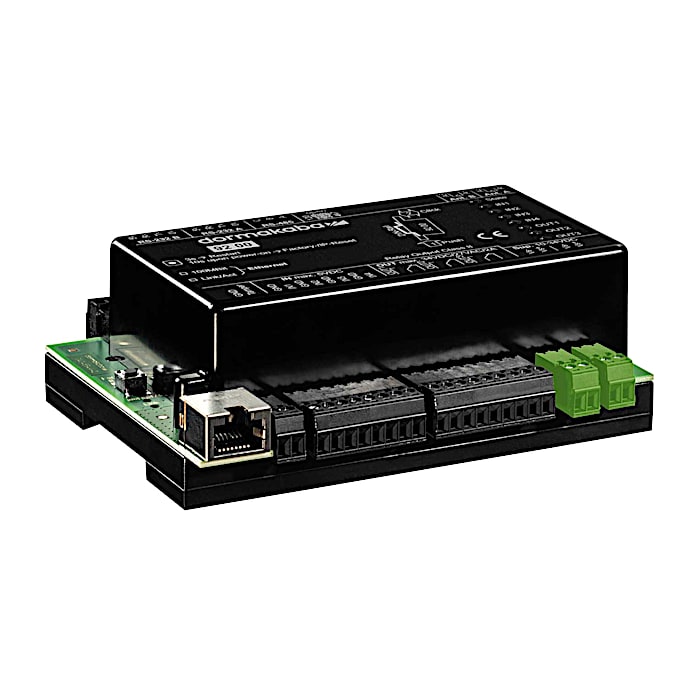

dormakaba access manager 92 00

The access manager 92 00 fulfils all the requirements of modern security systems. It manages and controls up to 16 doors depending on the system solution. There is a digital interface for setting up the type of control function required and the alarm management function.

The access manager can be installed as an individual device near an access point, in electrical cabinets or as a central unit with input/output modules.
There are powerful, flexible standard functions available which can be used for alarm and door management security functions. In fact the control unit has a whole library of applications which can be used to meet your requirements.
You can set up any type of control function or the alarm management function using the digital interface.
The number of I/Os can be extended with pluggable extension modules as required.
The manager is usually installed in the secure area which protects it from tampering and sabotage.
Two registration units can be connected to the control unit. Two RS-232 interfaces also offer the opportunity to integrate third-party readers.
The access manager 92 00 is used with the following readers:
- compact reader 91 04/91 10/91 12
- remote reader 91 15/91 25
- registration units 90 00/90 01/90 02/90 03/90 04
The access manager supports CardLink thus enabling the integration of standalone components such as digital cylinders.
It supports the LEGIC prime/advant and MIFARE Classic/DESFire RFID standards.
It is easy to integrate the access manager into existing systems.
Developed for today’s on-premise access solutions as well as future on-demand (IoT) solutions
TLS encryption between access manager and host system can be activated
