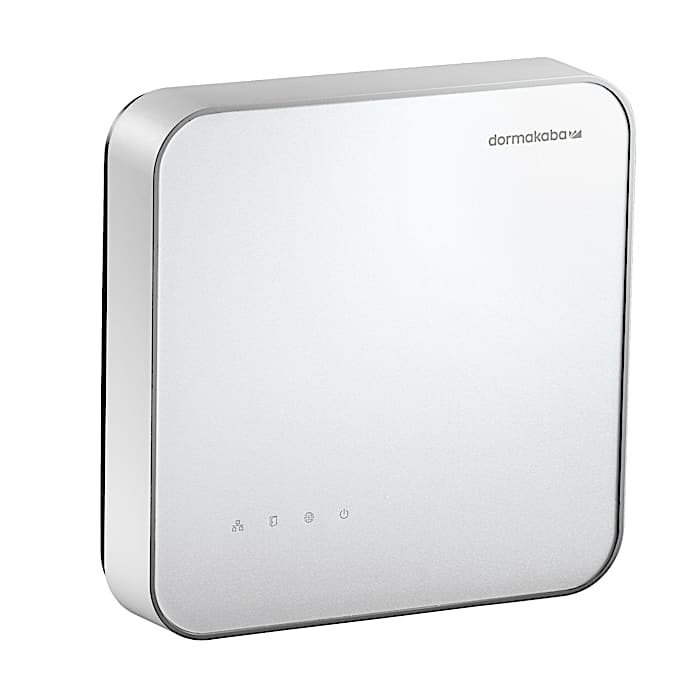

dormakaba access manager 92 32 for exivo

Simple installation, efficient operation
dormakaba access manager 92 32 fulfils all the requirements of a modern security concept and yet at the same time is easy and efficient to install and operate. Fast and simple assembly on doors reduces the amount of installation work and costs required.

Minimal cabling work, lower costs
dormakaba access manager 92 32 can use the building’s modern IT infrastructure, minimising the amount of cabling required. Power over Ethernet (PoE) can supply all of the power, avoiding the need for additional power supplies.

Compact and discreet design
If the 92 32 access manager needs to be installed in full view, its compact and discreet dormakaba design ensures it blends seamlessly into any building structure.

Technical Details

Supported RFID technologies

LEGIC advant

Dimensions

208 x 208 x 48 mm (W x H x D)

Housing

Wall mounting
Colour: Light grey NCS 1502-B, front cover in white RAL: 9016

Interfaces

Ethernet 10/100 Mbps with DNS/DHCP server
2 coaxial connections for registration units
4 digital inputs: max. 5 V DC
3 relay outputs: 30 V AC/DC; max. 2 A

Power supply

PoE (IEEE 802.3af), 15.4 W
PoE+ (IEEE 802.3at), 25.5 W
24 V DC

Ambient conditions:

Protection type: IP40
Relative humidity: 5% to 85%, non-condensing
Temperature range: -0 °C – +50 °C (in operation)

Functionalities

Door management
The access manager 92 32 manages and controls single access points, regardless of whether they are single doors or more complex access points.

Online/offline operating states
The access manager can make centralised or local decisions depending on whether it is operating in online or offline mode.
Reliable operation The system automatically restarts after a power failure, ensuring that the system is fully available again immediately.

Supported peripherals
Two registration units can be connected:

dormakaba registration units 90 00 / 90 01 / 90 02 / 90 04

Connections
All of the connections are designed as plug-in screw terminals, which ensures that installation is quick and easy. The different colours and labelling directly on the terminal ensure you get an overview very quickly.

Tamper proofing
The integrated tamper switch ensures any attempts to tamper with the device send an alarm to the access system.
