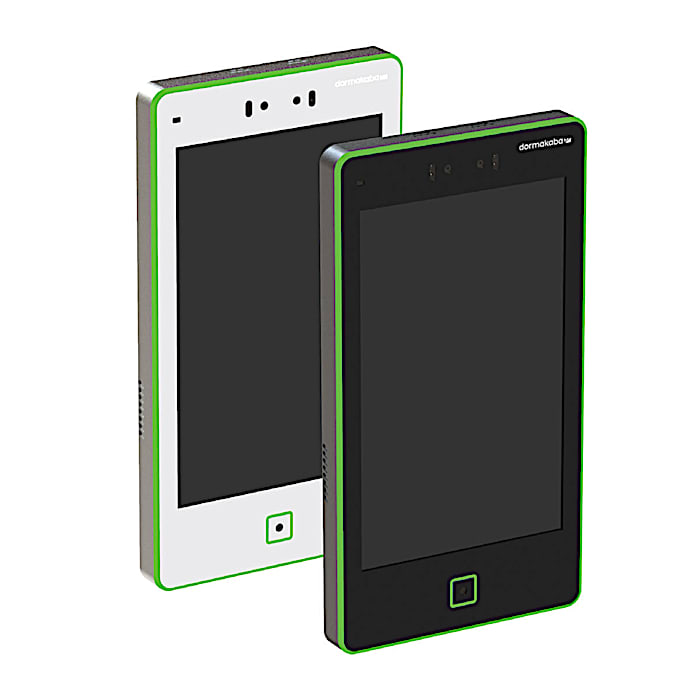

Facial Recognition Terminal 91 60

IP Protection

• IP53
• IP65 (with cover)

Housing

• Material: PC + aluminium
• Colour: RAL 9005 Black, RAL 9016 White

Dimensions

• 240.3mm (L) x 130.8mm (W) x 20mm (H)

Options

• RFID Reader only (LEgic & Mifare)
• RFID Reader with QR Code (Legic & Mifare)
• QR Code only
• Infrared Imaging Temperature Measurement set

Power Supply

• 12VDC, 3A

Ambient Conditions

• Operating temperature: -20 °C – 60 °C
• Relative humidity: 10% - 90% (non-condensing)

Interface

• Network*1
• USB*1
• Tamper*1
• Wiegand*1
• Realy output*1

Detection Distance

• 0.5m – 3m

dormakaba's Facial Recognition 91 60 can be operated with various control units:

• dormakaba access manager 92 30
• dormakaba interface 90 10
• Third party access manager support Wiegand Protocol
