B-COMM and B-COMM IoT 90 70

Extremely versatile access control and time recording

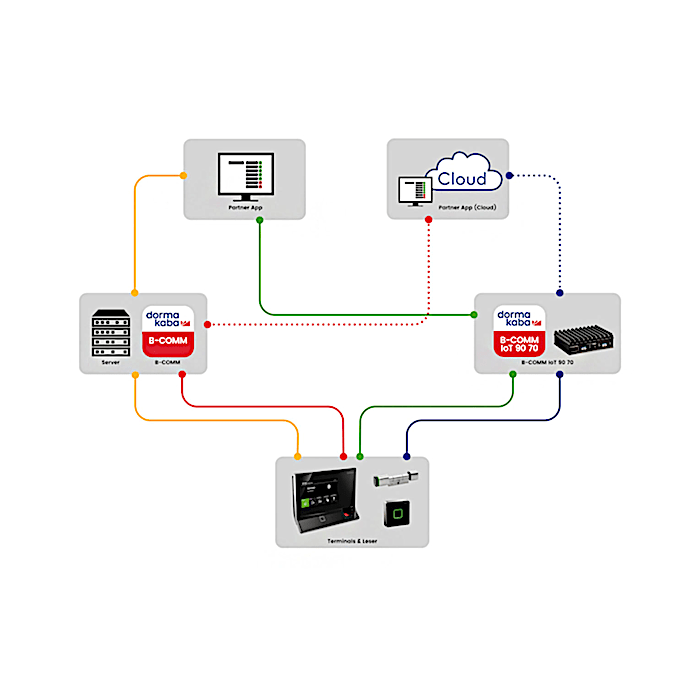

Into the cloud with B-COMM IoT 90 70
Connecting to partner applications in your system couldn’t be easier. Following one-off programming, the interface can be used on all platforms. No specific IT needs to be installed.

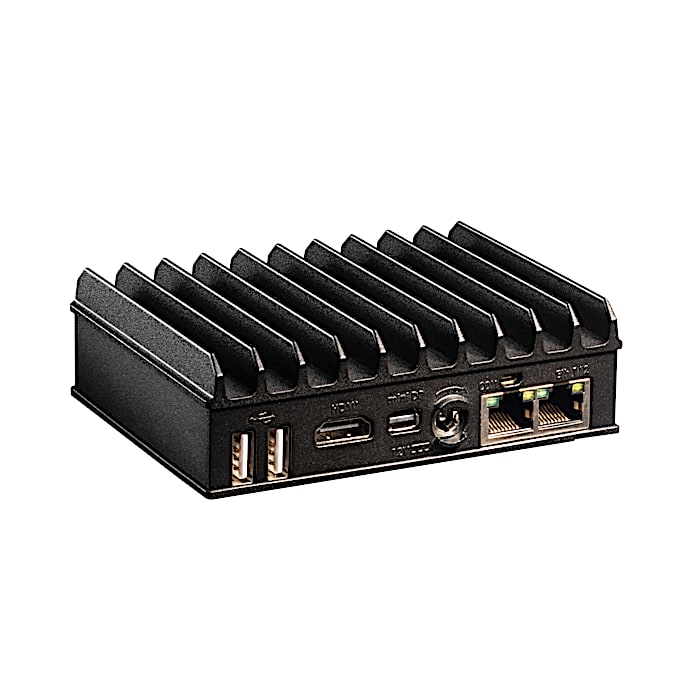

The main advantage for you: B-COMM IoT 90 70 is a standalone micro PC with a low-maintenance, efficient Unix operating system on which the B-COMM communication software is pre-installed at the factory and pre-licensed. B-COMM IoT 90 70 is only connected to the network at the customer’s premises and the AMQP universal interface means it can communicate in the cloud. But even if your software applications aren't all in the cloud yet, you can integrate B-COMM IoT 90 70 into your system.

B-COMM IoT 90 70 covers the complete B-COMM
B-COMM IoT 90 70 provides the full range of functions of B-COMM. This means you can continue managing the data from your attendance recording terminals or access components in an uncomplicated and cost-effective way, which is also independent of computer or operating system platforms. B-COMM scores additional points with its uniform, graphical user interface and the option of easily adapting configurable modules to individual requirements.

Details of the B-COMM communication software can be found here:

User administration
B-COMM user administration is used to create and manage users and grant specific rights.

User data communication
User data communication defines the maximum number of terminals, access readers and standalone components that can be logged on. It guarantees and handles the transfer of hardware recording data (booking data) to the partner application.

Parameterisation software
With the Parameter Editor Collection (PEC), the various terminal functions can be set in a user-friendly manner to meet varying requirements. Initialised or factory-set parameters can be modified according to customer-specific requirements and stored in the terminals.

TerminalStatus
TerminalStatus is a program that provides the system administrator with the communication states of the attendance recording terminals and access readers (e.g. "reachable/unreachable via network"), or error records or alarm records from terminals (e.g. "Tampering: terminal is opened") or door alarms (e.g. forced entry).

CardLink™
The B-COMM – Option CardLink module extends each partner application with the solution of standalone access control. The relevant door components are integrated into the application without any need for wiring. Wireless connectivity is also possible with the help of a gateway.

Biometrics
With the B-COMM – Option Biometrics integration platform, we offer you the communication structure for exchanging data between biometric terminals and the software application.

AVISO
This optional programming module makes it easier to create and customise AVISO routines of all kinds. The scripting language available in the terminals guarantees the possibility of extending the firmware functionality.

Multiple application interfaces
Depending on the type of record or record type modification, captured data records – for example, from attendance recording, production data acquisition or access control – can be assigned and transmitted to more than one online application.

E-mail server
B-COMM provides the ability to set up a connection to an e-mail server. When predefined or freely definable events occur, e-mails will automatically be sent to the recipients responsible.
