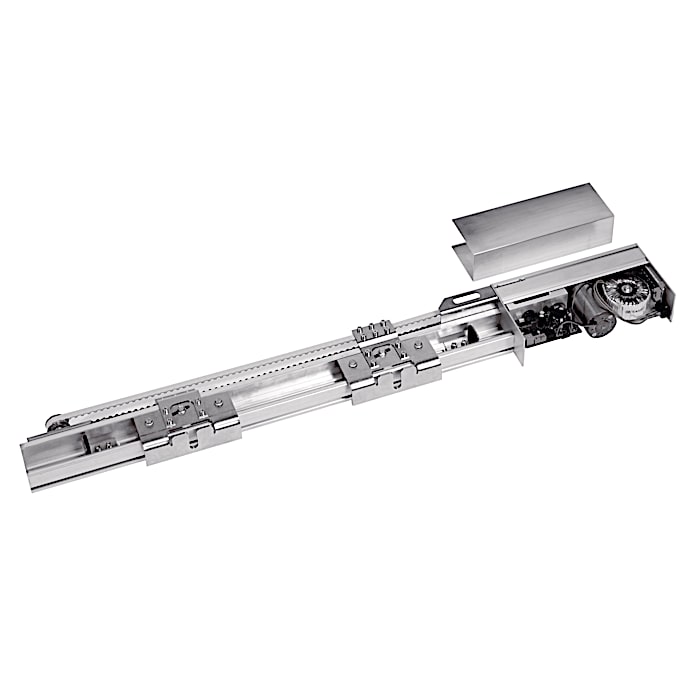

ES 400

The ES 400 is a sliding door operator in 1- or 2-leaf design for the hospital or operating theatre area. The low depth of the operator makes it particularly easy to integrate into the door frame.

The special requirements for use, such as the push & go function and the nurse/bed or partial opening, are already integrated in the basic control unit. The connection of safety sensors according to DIN 18650 / EN 16005 is also possible.

Fields of application

• Sliding doors in the clinic or care area
• Barrier-free interior doors or doors in the catering sector

Technical data

• Opening width: 700 - 3000 mm (1-leaf), 800 - 3000 mm (2-leaf)
• Leaf weight: 1 x 200 kg, 2 x 125 kg

Supplementary equipment/options

• Additional module for electronic safeguarding of secondary closing edges
• Equipotential bonding contacts for door panels
