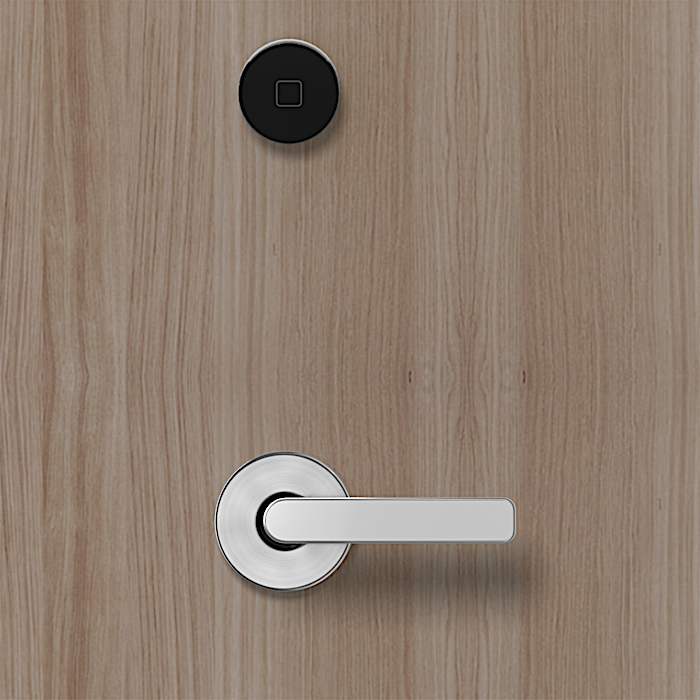

Quantum Pixel+

Engineered for innovative, seamless access control:

Mobile access via NFC, Bluetooth^®, and digital wallets, can be activated at any time
Versatile RFID credentials, including keycards, fobs, and wristbands
Real-time date/time stamp
Extensive audit trails with memory for up to 4,000 events
Lock programming and audit records are not erased during battery
replacement
Contactless NFC programming and auditing
Light indicator on the reader and handheld display for lock feedbacks and diagnostics
Connectivity: standard offline with Ambiance and online ready and enabled configurations with optional Ambiance RX system
Available with ANSI mortise lock; DIN version in preparation

Lock type: Mortise door lock with 1” (25.4 mm) solid deadbolt (optional auto deadbolt)
Available in interior, exterior, and oceanfront variants
Materials: Reader in black polycarbonate (PC) and polycarbonate/acrylonitrile styrene (PC/ASA); levers in brass, zinc, or stainless steel
Door Compatibility: fits door thickness from 1 3/8” (37 mm) to 3” (76 mm)
Operating Temperature: -31°F to 151°F (-35° C to 66° C)
IP54
Battery Life: up to 2 years with dormakaba battery pack.
Privacy & Security: Emergency and electronic privacy override features
Certifications: ADA-compliant, UL fire-rated, and tested to ANSI/BHMA Grade 1 standards.

Tailored hardware and software options for diverse needs:

Core Package: Mortise lock, levers inside & outside, reader and electronic reading unit, battery pack, and Ambiance software.
Optional: Ambiance RX, auto deadbolt, and additional RFID credential types.

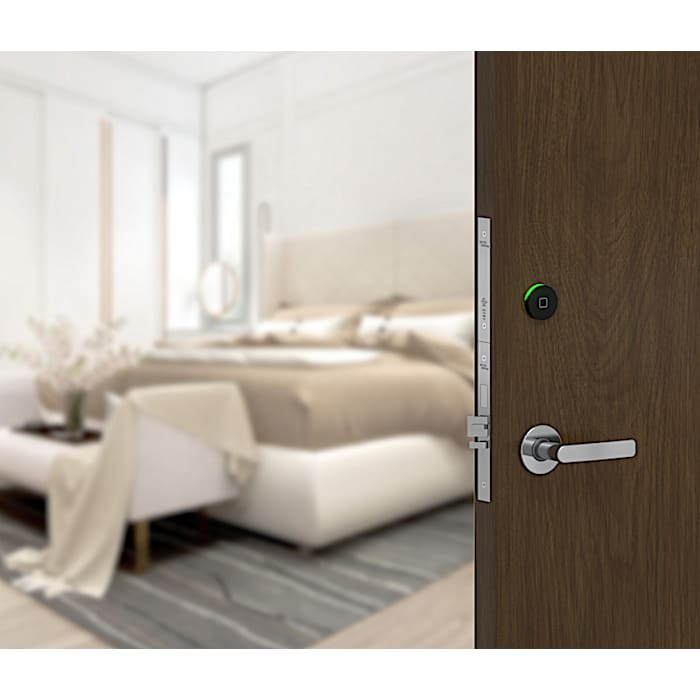

Suitable for small to large-scale hotels, the Quantum Pixel+ is designed for new constructions, renovations, or when replacing existing doors.

Access control for hotels of all sizes
The Quantum Pixel+, powered by smart technology, suits hotels of all sizes, offering seamless access for staff and provides a welcoming access experience for guests – delivering enhanced security and functionality
Optimized for new builds and door replacements
Integrates seamlessly into new projects or when upgrading your doors, the Quantum Pixel+ combines cutting-edge technology with modern security needs.
Effortless upgrades from previous versions
Engineered for easy retrofitting, the Quantum Pixel+ ensures a smooth transition from the previous Quantum Pixel generation
