Safe Lock 52 Series

Agency Approvals/Certificates

• UL Type l high security electronic locks
• SBSC High Security (Sweden, Denmark, Norway,
• Finland), VdS Class 2 (Germany), CE, EN 1300
• Class B (EU)

Electronic Specifications

Power Unit: Solenoid driven.

Power Source: PowerStar® technology - Internal generator creates power when dial is rotated. No battery necessary.

Battery Assist: One 9-Volt Alkaline (not included). Featured during Time Delay and Open Window periods. Also provides additional power during lengthy operations.

Product Variants

• 52 - basic functions
• T52 - basic and time delay functions

Input Units

• Plastic housing with silicone rubber tactile keypad, 2 LEDs and buzzer

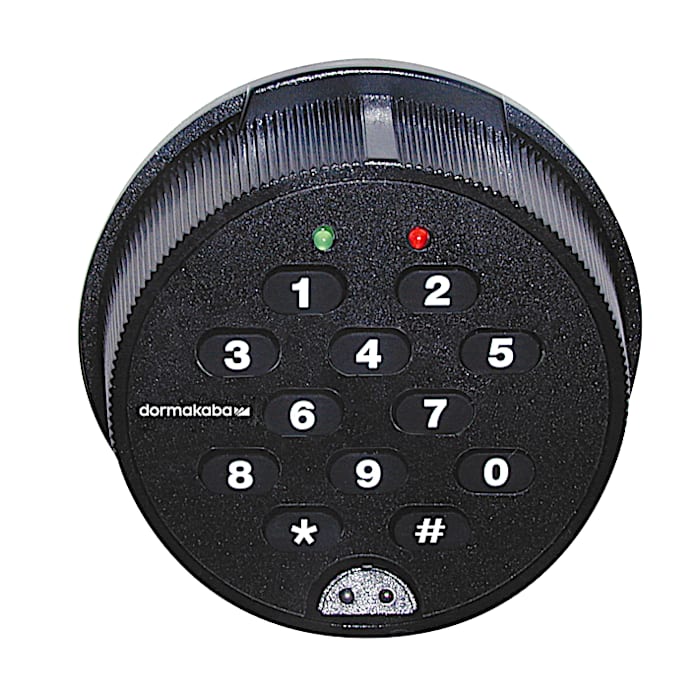

• Round housing, buttons in the face of the lock

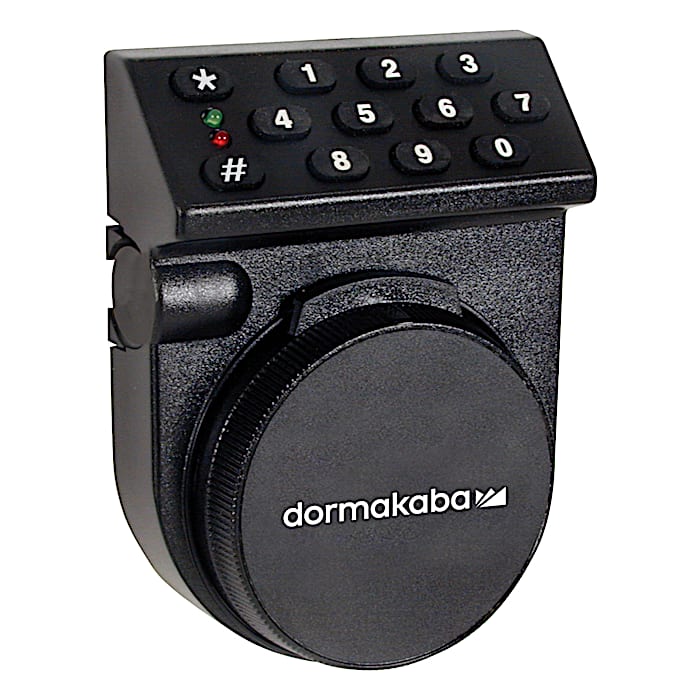

• Vertical housing, buttons across the top of the lock

Lock Units

• Dead bolt
  • Lock case, solid cast zinc, flash and chromate conversion coat for corrosion resistance
  • Industry standard container lock mounting pattern
  • Bolt with tapped holes: M4 (2)
  • Bolt movement (nominal): 11.8 mm
  • Maximum load movable by the bolt: 22 N
  • Maximum load against bolt when thrown (all directions): 1000 N
• Swing bolt
  • Lock case, solid cast zinc, flash and chromate conversion coat for corrosion resistance
  • Industry standard container lock mounting pattern
  • Square nose slide bolt
  • Bolt movement (nominal): 11.8 mm
  • Maximum load movable by the bolt: none
  • Maximum load against bolt when thrown (all directions): 1000 N

Code Functions

• Single mode
• Dual mode
• Master/user control
• Shelve function
• Wrong try lockout after 5 false codes

Time lock functions

• Time delay (T52)
• Opening window (T52)

Accessories

• Time Delay Display
  • ​LCD display for time delay and opening window (T52)
