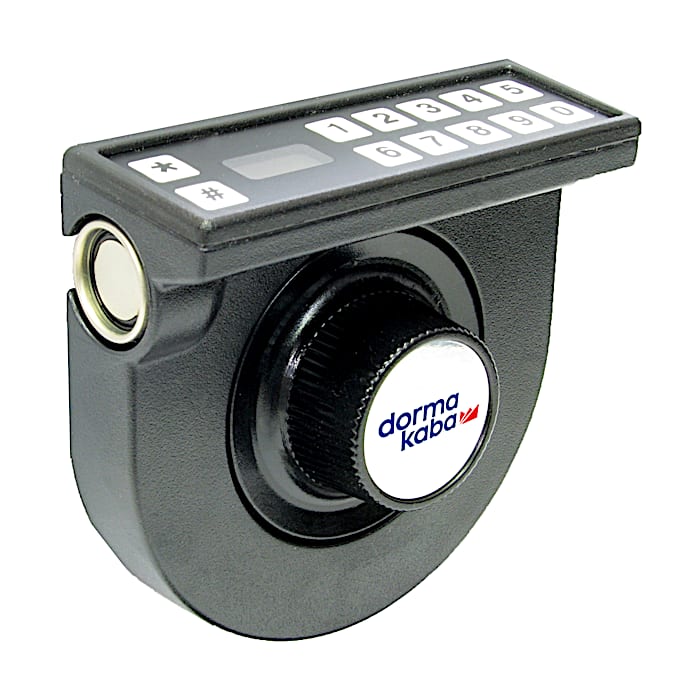

Cencon ATM

Three Modes of Operation

In consideration of different access groups of the ATMs, the system offers three independent working modes for bank personnel, cash- replenishment and technicians.

FLM Mode
Designed for First Line Maintenance personnel, the FLM mode of the Cencon lock permits the dispatch center to give a One Time Combination to a technician "on the fly." FLM personnel are each issued a Smart Key and call their dispatch center to request a One Time Combination. Once used, this combination will not function again, thus insuring absolute access control. A Close Seal code will be displayed on the lock's LCD upon the lock closing. When entered into the dispatch center's computer, assures that the Cencon lock is locked and secure.
Route Mode
While permitting the same access control as FLM Mode, Route Mode additionally permits pre-defined routes for armored cash replenishers. Route personnel are each issued a Smart Key and a route of locks may be assigned permitting route personnel to access a series of locks without contacting their dispatch center. Route personnel can either call their dispatch center at the end of the shift to report the close seals, or the close seals can be read from the key by the Cencon software.
Bank Mode
Bank Mode is designed for bank personnel who may need access to the Cencon system lock but do not wish to operate through a dispatch center. Smart Keys and static combinations are issued to bank personnel who may unlock the Cencon lock at any time. An internal audit trail tracks all activity of bank personnel just as it does for FLM and Route personnel. dormakaba's Cencon software permits bank administrators to manage Bank Mode on site. Bank users may be added or deleted and audit trails may be downloaded from the lock.

Audit

Unlimited in the system
956 events in the lock
30 events in Smart Key

Alarm Connection

Duress alarm (silent alarm)
Bolt sensor

Please refer to the List Price Book for a complete list of options and accessories.

Technical Details

Agency Approvals/Certificates

UL Type l high security electronic locks
SBSC High Security (Sweden, Denmark, Norway,
Finland), VdS Class 2 (Germany), CE, EN 1300
Class B (EU)

Electronic Specifications

Power Unit: Solenoid driven.

Power Source: PowerStar® technology - Internal generator creates power when dial is rotated. No battery necessary.

Product Variants

Shunt (with output signal) or Non-Shunt (without output signal)

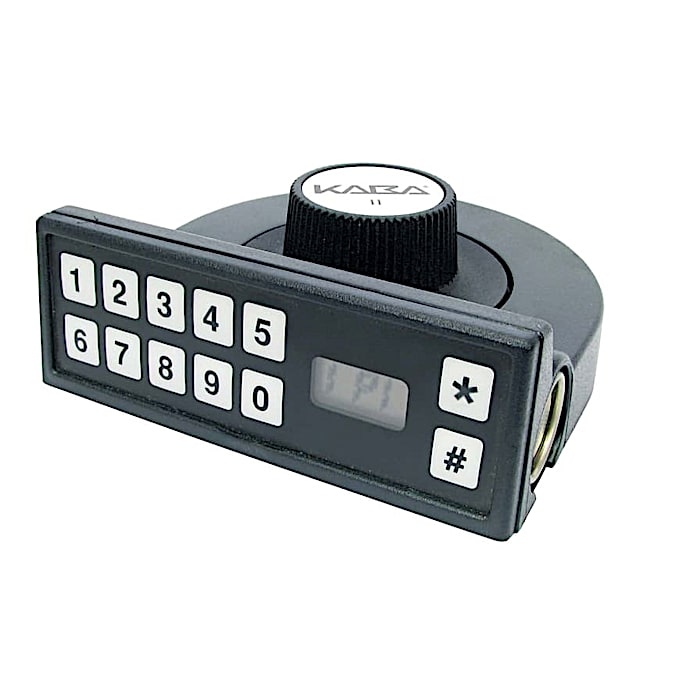

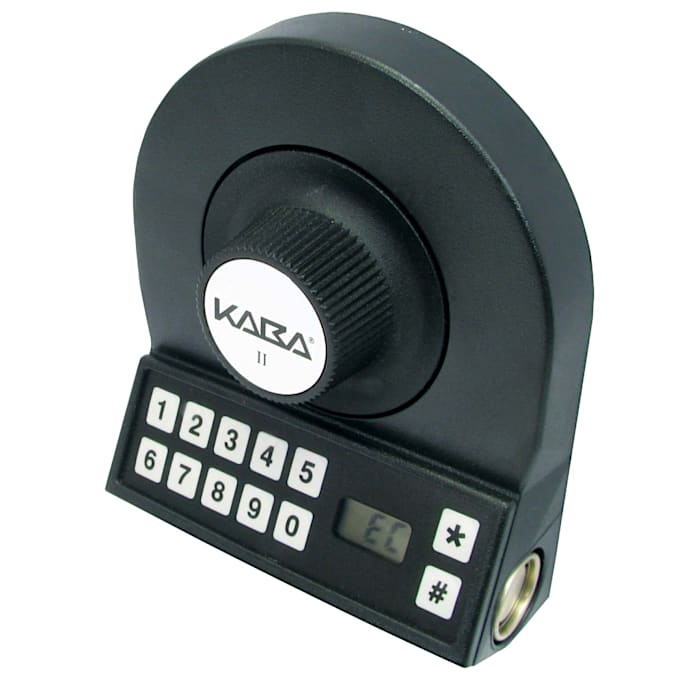

Input Unit

Plastic housing with tactile membrane keypad
2 LEDs
Buzzer
Smart Key reader
3-digit LC display

Lock Units

Dead bolt
- Lock case, solid cast zinc, flash and chromate conversion coat for corrosion resistance
- Industry standard container lock mounting pattern
- Bolt with tapped holes: M4 (2)
- Bolt movement (nominal): 11.8 mm
- Maximum load movable by the bolt: 22 N
- Maximum load against bolt when thrown (all directions): 1000 N
Swing bolt
- Lock case, solid cast zinc, flash and chromate conversion coat for corrosion resistance
- Industry standard container lock mounting pattern
- Square nose slide bolt
- Bolt movement (nominal): 11.8 mm
- Maximum load movable by the bolt: none
- Maximum load against bolt when thrown (all directions): 1000 N

Please refer to the List Price Book for a complete list of options and accessories.

Functionalities

Access Control
A user needs both a One Time Combination and a Smart Key to access the lock.

One Time Combination
A One Time Combination is dispatched each time access is required to a container controlled by a Cencon lock.

Smart Key
An encrypted electronic key is used as a personal identifier, programming device or to transfer data between system components.

Close Seal™
The Close Seal acts as an electronic signature, stamping the date and time showing the lock was locked and secured.

Duress
When combined with a connection to an alarm system, entering a special "Duress" Combination will automatically send a silent alarm to your security facility while allowing the service technician entry to the lock. This helps ensure the safety of your personnel and the commodities you protect.

Bolt Switch
The Cencon lock comes standard with the capability to connect an alarm system to monitor the position of the lock bolt. Upon retraction or extension of the bolt, the signal can arm or disarm the alarm.

Alarm Shunt Operation
Cencon is compatible with most alarm systems. Entering the correct One Time Combination and presenting the assigned Smart Key deactivates the alarm.

Audit Trail
The Cencon system records all lock activity, more than 1000 events in some cases, and permits easy downloading of the information via a Smart Key for generating detailed audit reports.

Easy Retrofit
Cencon has the same footprint as conventional mechanical combination locks, making the retrofit process easy and inexpensive.

User Friendly Software
Cencon software allows you to control access to all of your containers with no special wiring. The Windows 7 or higher operating system, Oracle or Microsoft SQL Server interface, makes it simple to install and use on a stand-alone PC, a local area network (LAN) or wide area network (WAN).

Applications

Cencon System Software

Based on Microsoft Windows® operating systems
Includes a single Cencon Server License for database installation on a single SQL server.
Includes SW disk, 2 red SA keys, 3 black Logon keys, 1 white ClockSet key, 1 grey ReSync Key, 1 change key, documents.

CenTran System Software

Based on Microsoft Windows® operating systems
Includes CD with software, manual, cable, 2-port key reader, USB adapter and Smart Key
- Basic lock settings
- Add/Delete users
- Audit readout
- User profile readout

Cencon KeyBox Agent Software

Based on Microsoft Windows® operating systems

Cencon KeyBox

For system control, dispatch, and administrative stations

Smart Key F

First Line Maintenance mode, lock user (blue)

Smart Key R

Route service personnel mode, lock user (yellow)

Smart Key D

Dispatcher, Cencon software user (black)

Smart Key S

Supervisor, Cencon software user (black)

Smart Key SS

Super Supervisor, Cencon software user (black)

Smart Key SA

Supervisor Audit, data transfer (red)

Smart Key B

Bank mode, personnel lock user (teal)

Smart Key A

CenBank software additional log-on (orange)

Smart Key Install Key

Smart Key ClockSet Key

Smart Key Lock ReSync Key

Duress Alarm Interface

Interface for the duress alarm (silent alarm)

Please refer to the List Price Book for a complete list of options and accessories.
