Mauer Mechanical
Defender Module

Mauer Mechanical

Defender Module

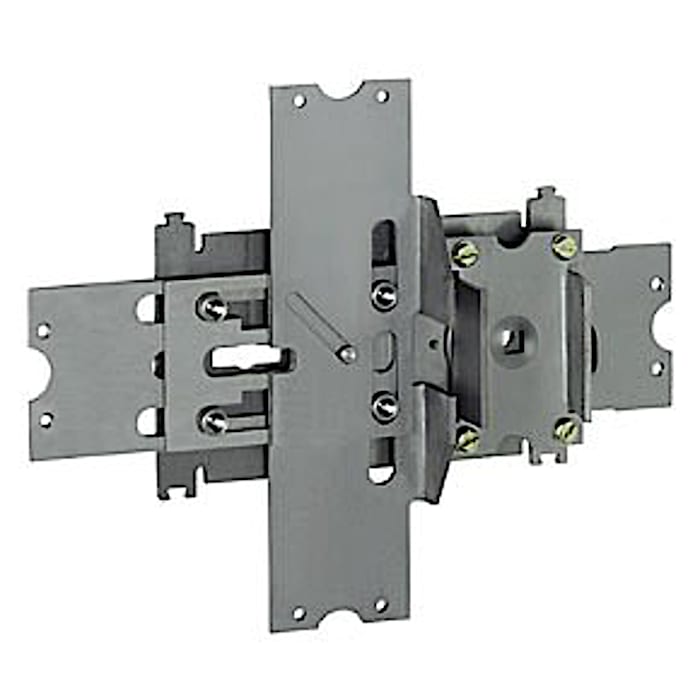

The 4-sided bolt work family is characterised by its patented modular system. The Defender Module 1 is designed as a 1-lock operated bolt work for safes CEN 0-II. Due to the module components it can be extended very easily from the 1-lock to the 2-lock operated bolt work Defender Module 2.

Both bolt works offer best safety conditions for attacks on the operating handle.

Request a Quote

Defender Module

Defender Module

Product Details

Bolt work

Installation applications
- 4-sided
- Shaft throw 22 mm, opening angle of handle 55°
- Shaft connections: Ø 4.1 mm
- Shafts as loose components
- Lock mounting: 4 M6 threaded bushes
- Opening clockwise
Manipulation protection
- Bolt protection
- Crimped base plate for wire protection
Steel blank
Square eccentric drive 8 mm, with defined breaking points

Bolt work 84081 Defender Module 1

1-lock operation
Dimensions base module 163 x 104 mm
Short shafts
Weight approx. 1,600 g

Bolt work 84082 Defender Module 2

2-lock operation
Dimensions base module 163 x 204 mm
Long shafts

Defender Module

Defender Module

Related Products

Primus C

Primus C

Lock with dead bolt for safes CEN VI-XII. Approx. 13 billion theoretical variations. Standard footprint. We guarantee that every lock is absolutely unique due to the high number of variations available. Key carriers 86124 Servant K and 94012 Servant R provide further key variations on the standard keys.

VAROS

VAROS

Changeable lock with dead bolt for safes CEN III-V. Approx. 10 million theoretical variations. Standard footprint. The lock can be changed to a new set of keys from the front of the lock via the users key, without additional tools. The Varos can be specified as factory or change position when ordering. If delivered in change position works keys are not required. The new "Mini Bit" key geometry allows a simple installation in safes that are prepared for installation of mechanical or electronic combination locks. No special key hole design is required.

Variator B

Variator B

Changeable lock with dead bolt for safes CEN III-V.Approx. 60 million theoretical variations.Standard footprint.User-friendly change from the front utilising a change activator i.e. without having to dismantle the door covering or the openings in the door interior.Change can however, also be initiated via a slide unit at the back of the lock.The lock can be supplied in user or works locking mode.

Praetor B

Praetor B

Lock with dead bolt for safes CEN III-V. Approx. 60 million theoretical variations. Standard footprint.
