Depravo K

Mauer Mechanical

Depravo K

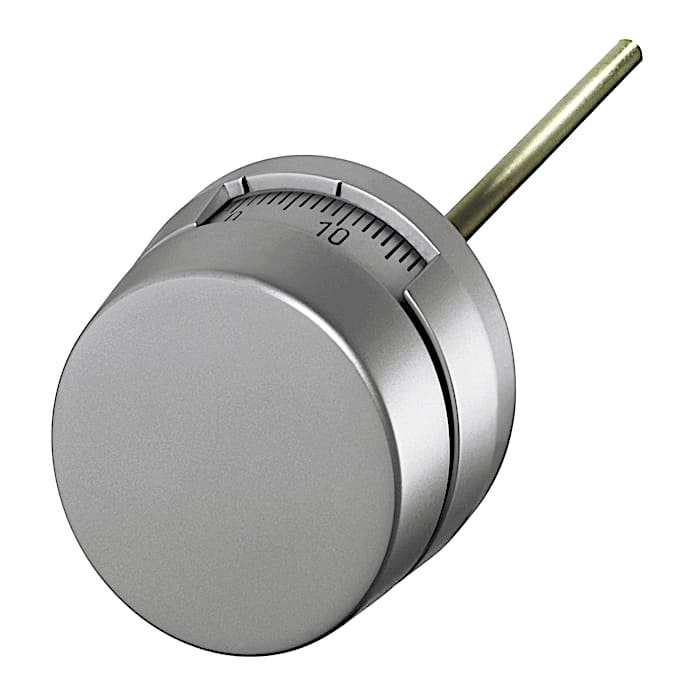

The conical dial & ring combination Depravo K is for the operation of mechanical combination locks.

Dial & ring combination

External diameter 88 mm
Polished aluminium EV1 anodised

Scale

Top reading
Separate change and opening marking

Spindle

Thread UNS 5/16"-40, brass
Projecting 120 mm (110 mm effective thread)
Dial splined on 50

Request a Quote

Depravo K

Depravo K

Product Details

Dial & ring combination

Depravo K - standard - Order code: 94010

Options

Spindle projecting 43 mm (43 mm effective thread)
Spindle projecting 200 mm (110 mm effective thread)
Spindle projecting 300 mm (110 mm effective thread)
Spindle with protection against drilling and breakthrough, Ø 19 x 35 mm
Window offset 15° to the left

Depravo K

Depravo K

Product Downloads

Depravo K - Zeichnung, Drawing

Depravo K - Zeichnung, Drawing

47.59 KB
