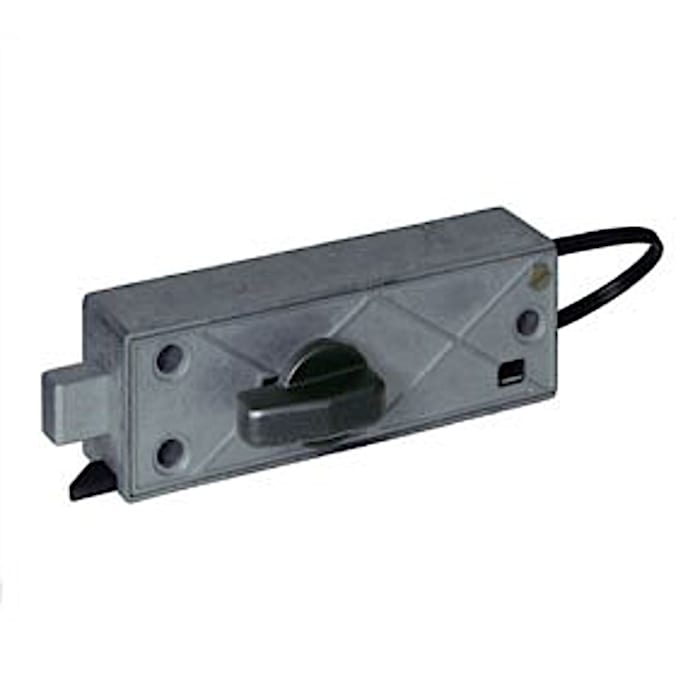

E-lo-safe D

Lock

• E-lo-safe D - standard - Order number: 79106

Options

• Turning knob, for door thickness from 3-33 mm
• Turning knob, for door thickness from 34-54 mm
• Tamper switch
• Lock case and bolt surface treated
• Connector

Lock function

• Passive release control:
  • After authorisation at the central control the current feed of the release solenoid starts immediately. After the lock has been opened (key turned) the current feed is interrupted.
• Deposit box monitoring:
  • Using this concept only a limited monitoring of the deposit box is possible (e.g. box has been broken open).

Key/latch contact (separate line), cable 5 wires, usable length 200 mm, cable ends tin-plated

• Interface: Input
• Function element: Release solenoid
• Specification: 360 Ohm, Umin=13 V DC
• Operating time (OT): 13 V: 100% OT, 24 V: 48% OT



• Interface: Output
• Function element: Key/latch contact
• Specification: Change over contact, 50 mA, 30 V DC
• Operating time (OT): 13 V: 100% OT, 24 V: 48% OT

Alternative operating voltage (resistance solenoid)

• Interface: Input
• Function element: Release solenoid
• Specification: 148 Ohm, Umin=5 V DC
• Operating time (OT): 6 V: 100% OT, 12 V: 87% OT, 24 V: 15% OT



• Interface: Input
• Function element: Release solenoid
• Specification: 563 Ohm, Umin=20 V DC
• Operating time (OT): 24 V: 87% OT

Lock function

• Active release control:
  • After authorization at the central control a supply voltage is applied at the lock. The current feed of the release solenoid starts after the lock has been opened (key turned).
• Deposit-box monitoring:
  • Using this concept it is possible to monitor the lock/deposit box (e.g. lock has been manipulated or box has been broken open).

Electronically controlled lock, cable 2 wires, usable length 211 mm, cable ends tin-plated

• Interface: Input
• Function element: Release solenoid
• Specification: 360 Ohm, Umin=13 V DC
• Operating time (OT): 13 V: 100% OT, 24 V: 48% OT

• ​Interface: Output
• Function element: Key/latch contact
• Specification: Normally closed, 50 mA, 30 V DC
• Operating time (OT): 13 V: 100% OT, 24 V: 48% OT

Lock function

• Passive release control:
  • After authorisation at the central control the current feed of the release solenoid starts immediately. After the lock has been opened (key turned) the current feed is interrupted.
• Deposit box monitoring:
  • Using this concept only a limited monitoring of the deposit box is possible (e.g. box has been broken open).

Key/latch contact (separate line), cable 5 wires, usable length 200 mm, cable ends tin-plated

• Interface: Input
• Function element: Release solenoid
• Specification: 360 Ohm, Umin=13 V DC
• Operating time (OT): 13 V: 100% OT, 24 V: 48% OT

• Interface: Output
• Function element: Key/latch contact
• Specification: Change over contact, 50 mA, 30 V DC
• Operating time (OT): 13 V: 100% OT, 24 V: 48% OT
