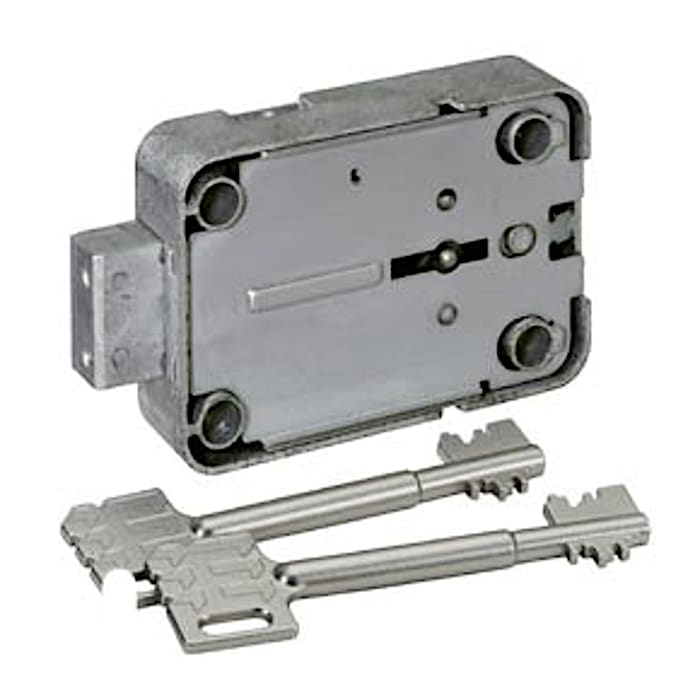

Lock with dead bolt for safes CEN 0-II. Approx. 280,000 theoretical variations. Standard footprint. The high sales rate reflects this lock's success world-wide.
EN 1300 A, ECB-S, CNPP a2p(E) Niveau A, VdS class 1, GOST class B, IMP class A, UL 437, ICECON class A
Lock
8 levers, electrolytic galvanised steel
Key retained when in open position
Die-cast lock case and bolt, throw 12 mm
Weight approx. 340 g
Admissible mounting positions
Right hand lock, opening clockwise
Technical Details
Lock
President A - standard - Order number: 71111
Options
Microswitch for bolt monitoring (2-way contact)
Bolt with 2 M4 threads
Key pin projecting 9 mm
Lock case and bolt surface treated
Left hand lock opening counter-clockwise
Accessories
Lock fixing screw: cheese head screw galvanised, DIN 84 - BSW ¼“ x 32 mm - 4.8, securing ring - Order number: 3 118 000 030
Mounting plate 2 mm thick, with 4 M5 threaded bushings, screws and securing rings - Order number: 3 118 000 300
Mounting plate 2 mm thick with manganese steel plate 1.5 mm thick, with 4 M5 threaded bushings, screws and securing rings - Order number: 3 118 000 290
