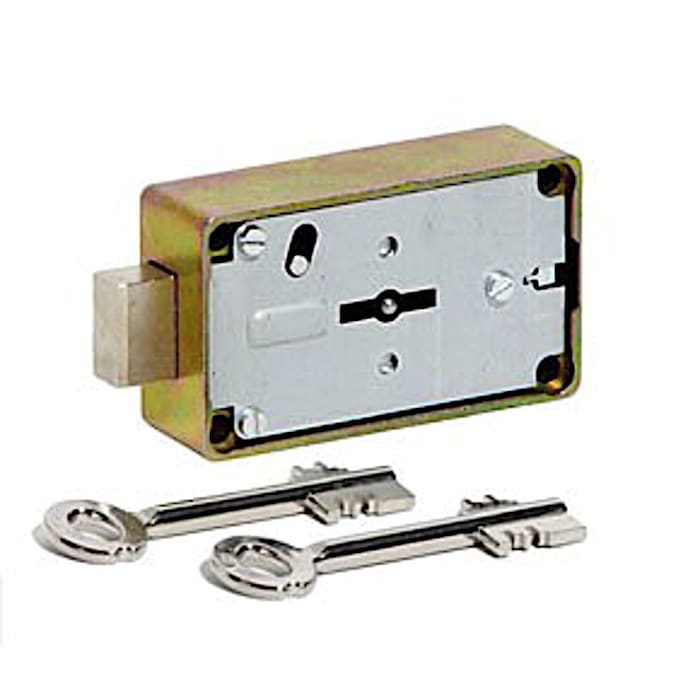

Changeable lock with dead bolt. Approx. 78,000 theoretical variations. Change is initiated at the back of the lock using a slide unit. The lock can be supplied in user or works locking mode.

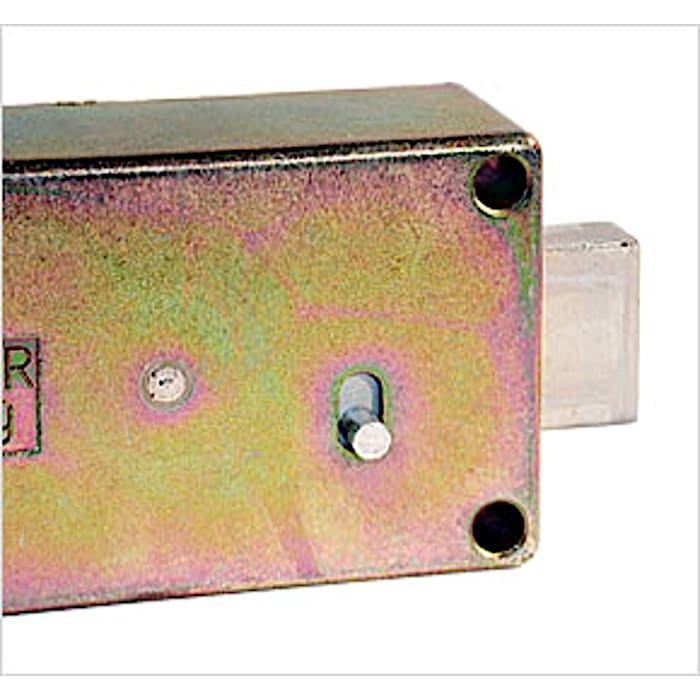

Changeable lock, change initiation via slide unit at the back of the lock
8 levers, electrolytic galvanised steel
Key retained when in open position
Die-cast lock case and bolt, surface treated, throw 9 mm
Admissible mounting positions
Right hand lock, opening clockwise
Technical Details
Lock
Vary - standard - Order number: 73071
Options
Bolt with 2 M5 threads
Key marked with permutation number
Supplied in works locking mode
Accessories
Mounting plate 2 mm thick, with 4 M5 threaded bushings, cap nuts and securing rings - Order number: 3 118 000 250
Mounting plate 2 mm thick with manganese steel plate 1.5 mm thick, with 4 M5 threaded bushings, cap nuts and securing rings - Order number: 3 118 000 360
Mounting plate 2 mm thick with key guide projecting 6, 8.5, 10 or 14 mm on request
