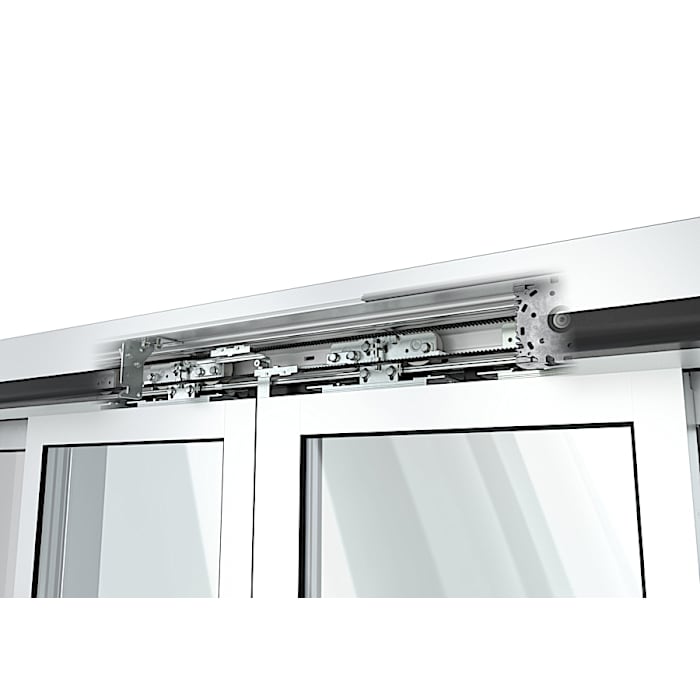

The new generation of sliding door operators
ES PROLINE is suitable for almost all applications in the field of automatic sliding doors, whether for use on classic sliding doors or for escape and rescue routes. With the ES PROLINE, you are always on the right track.
The operator system implements the current trend topics such as sustainability and digitalisation. At the same time, the ES PROLINE complies with the current European and German standards and safety regulations according to EN 16005.
Fields of application
- Sliding doors in 1- or 2-leaf design
- Approved as FST variant for use in escape and rescue routes
- Technical data sliding doors
- Opening width: 700 to 3,000 mm
- Door leaf weight: 1x / 2x 125 kg (ES 250 PRO/ES 250 PRO FST), 1 x 250 resp. 2 x 200 kg (ES 400 PRO/ES 400 PRO FST)
Additional equipment / options
- Sensor cover for complete integration of the sensor technology on the inside
- Various electromechanical locks
- Extension modules for various special functions
- Advantages of the new operator system
- One system for almost all applications
- Energy-efficient and durable operation
- Reduced number of assemblies
- Simple assembly and quick installation and setting into operation (plug & play)
- Assembly and setup possible without special tools
- Site-compatible packaging (100 % recyclable)
- Conversion of existing systems possible without problems
