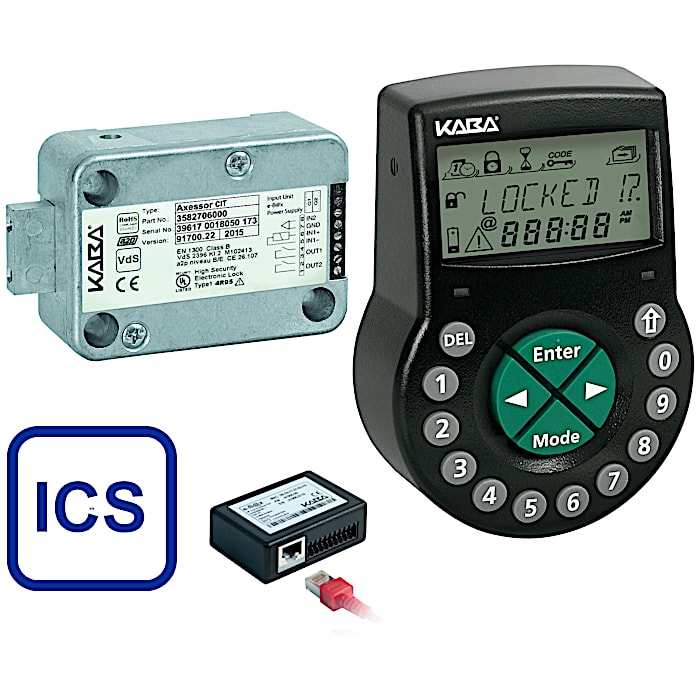

Axessor CIT

Approvals/Certificates

EN 1300 B, VdS Class 2, UL Type 1, ECB●S
VdS bolt switch for alarm systems class C

Codes (bank mode)

1 Master
4 Managers
36 Users
1 Courier

Audit

> 10.000 events

Power Supply

3 x 1.5 volt Alkaline batteries LR6/AA (included in delivery)

Input Unit

Metal housing in black
Silicon key pad, green navigation keys
LC display and buzzer
Integrated battery compartment

Lock Unit

Motor bolt, 5 N moving force in both directions
Adaptable bolt function: dead bolt or spring bolt (non-VdS) setting
Bolt with 2xM4 threads
Lock mounting set, incl. 3xM6 screws

e-Box

Networkmodul
5 x Outouts potential-free
5 x Inputs contact-controlled
2 x Axessor-Bus
1 x LAN
1 x external power supply

Technical Details

Electronic combination lock

Axessor CIT

Input Units

Metal, black

Software

Activation software AS280-INSW (ICS/OTC/DM activation)
- Included in delivery: USB connection cable, USB dongle
Programming software AS284-USBW (lock settings)
- Included in delivery: USB connection cable, USB dongle (1x) to configure and parametrize locks for "stand alone" applications
Programming software AS284-NETW (lock settings)
- Included in delivery: USB connection cable, USB dongle (4x) to configure and parametrize locks for network applications
Server Management Software AS 274
- (Manage more than 100 locks and users)
- Includes: 1 APHI Ethernet RJ45

Accessories

Dongle AS284-OW Operator
- USB dongle for programming software AS284-USBW & AS284-NETW
Dongle AS284-AW Administrator
- USB dongle for programming software AS284-NETW

Functionalities

Code Functions

One time combination with close code, incl. battery status and lock/door activity feedback
Temporary code validity
Switchable mode (one time combination and/or bank mode)
Wrong try lockout after 4 false codes
Duress code (silent alarm)
Single mode (1 x 6 digits)
Dual mode (2 x 6 digits)
Shelve function

Time Lock Functions

Time delay
Duress time delay
Opening window
time lock periods (bank mode)
Non-return time delay
Automatic DLST (summer/winter time) changeover

Applications

AS284-NETW Programming Software Use the AS284-NETW software to configure Axessor Series products like Axessor USB (stand alone only), Axessor IP and Axessor CIT. In Axessor IP or Axessor CIT systems software AS284-NETW can be used for remote administration or networked operation in general (by using eBox). Software download: http://go.dormakaba.com/AS284 AS284-USBW Programming Software Use the AS284-USBW software to configure and parametrize Axessor Series products like Axessor USB, Axessor IP and Axessor CIT. This software is for stand alone purposes only (no networking functionality). Software download: http://go.dormakaba.com/AS284 AS280-INSW Installation/Activation Software Use software AS280-INSW to install network locks (Axessor IP/CIT with eBox) and to activate one time combination mode (Axessor CIT only).
