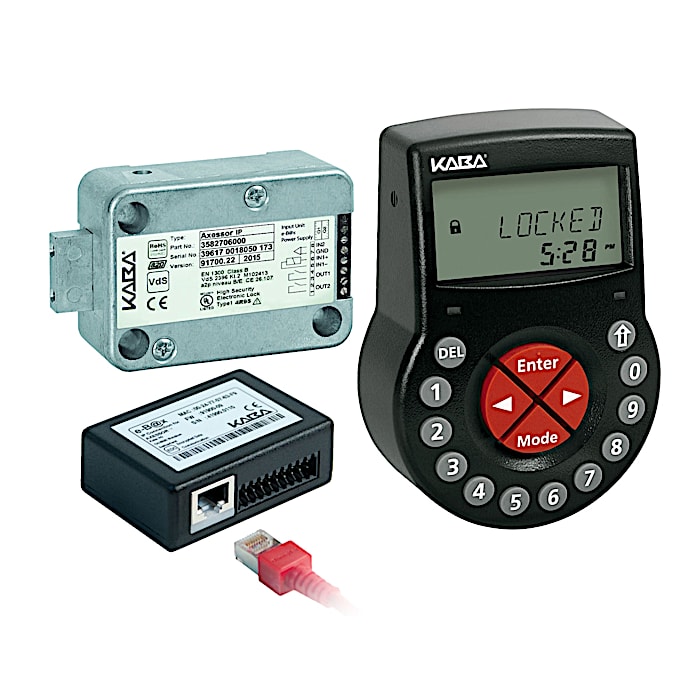

Axessor IP

Approvals/Certificates
EN 1300 level B, VdS Class 2, UL Type 1, ECB●S, A2P
VdS bolt switch for alarm systems class C

Codes

• 1 Master code
• 4 Manager codes
• 36 User codes
• 1 Courier code

Access Rights

• Selectable access by managers and users for immediate locking
• Selectable lock opening by master and manager
• Selectable manager access to users of all groups

Event history/Audit

• Audit with time stamp (10000 events)

Alarm Connection

• Outputs
  • ​2 Outputs (e.g. bolt position, duress alarm, additional trigger criteria programmable). Selectable polarity (NO or NC)*
• Inputs
  • ​2 Inputs (e.g. door contact, remote blocking, additional trigger criteria programmable). Selectable polarity (NO or NC)*

Power Supply

• Battery and/or external power supply

Input Unit

• Metal housing in black
• Silicon rubber keypad with red navigation keys
• Integrated battery compartment
• Large, contrasted LC display
• Operator selectable display language
• Buzzer
• Built-in USB interface
• Up to 14 locks

Lock Unit

• Adaptable bolt function: Dead bolt/Spring bolt**
• Latch bolt version** available
• 5 N moving force in both directions
• Dead bolt with 2 threads M4
• Up to 14 locks per input unit

e-Box

• Networkmodul
• 5 x Outouts potential-free
• 5 x Inputs contact-controlled
• 2 x Axessor-Bus
• 1 x LAN
• 1 x external power supply

Axessor IPNOT Feature* **

• Input 2 configurable for emergency opening*
• (-> AS284-W -> Inputs -> assign input 2 to emergency opening -> invert input 2)
  • Remarks:
    • No VdS approval
    • No UL approval

* with Programming Software
** non-VdS
